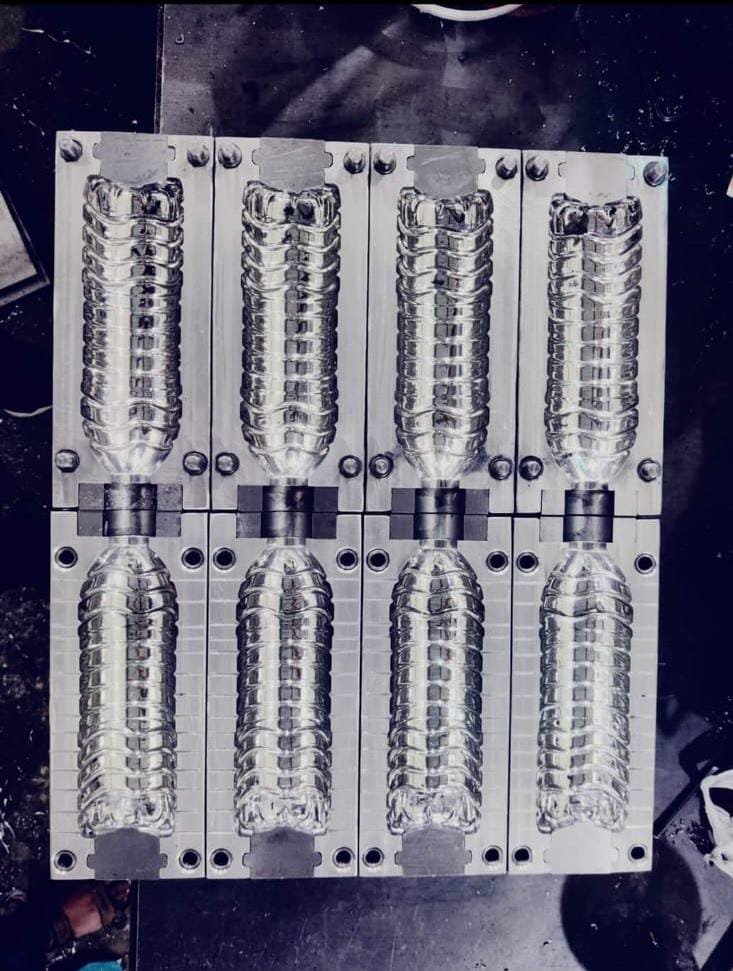

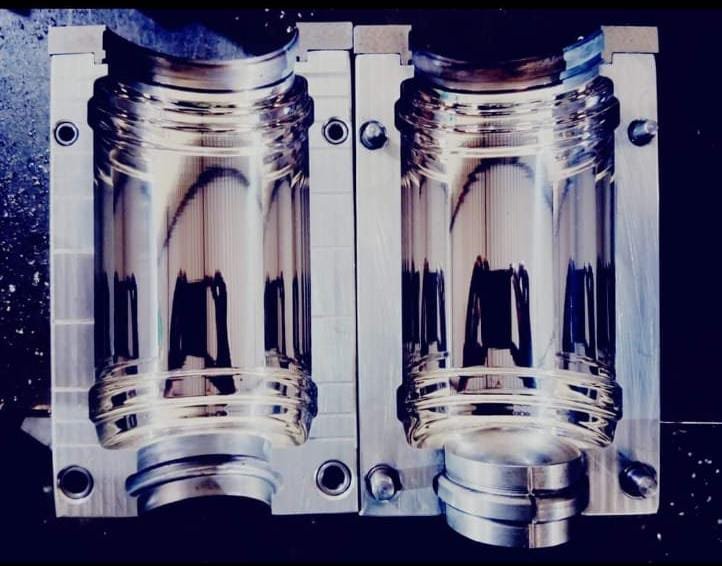

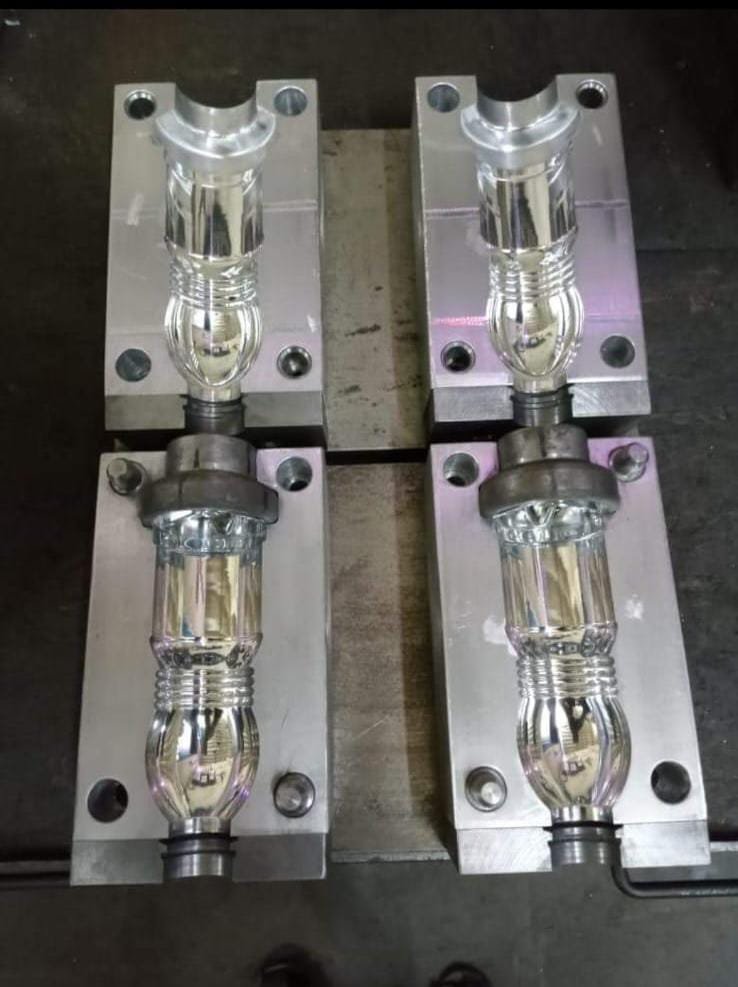

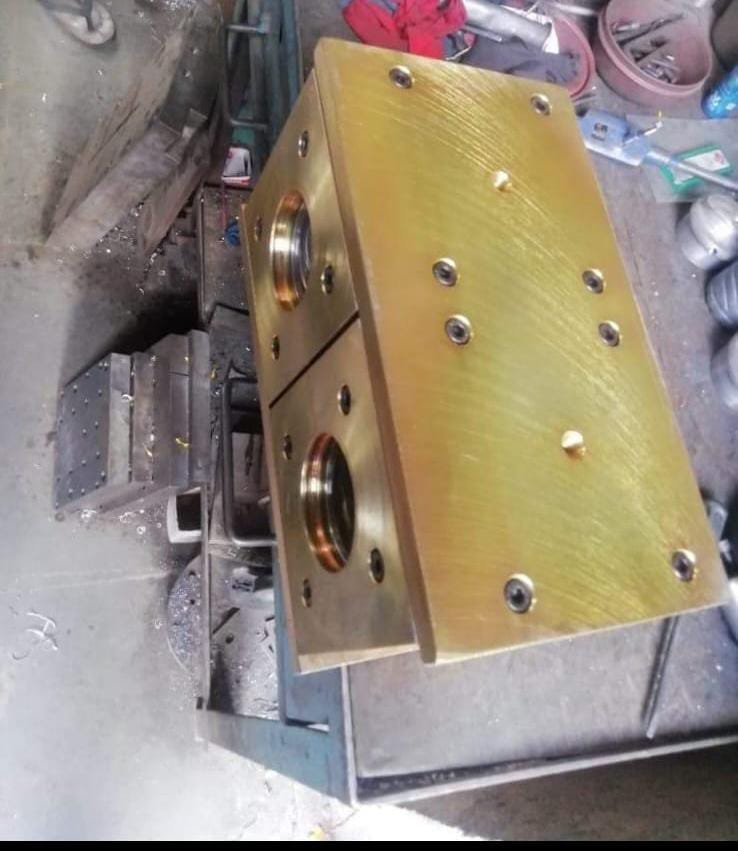

Cold Runner Mould Specifications
Cold Runner components are parts of an injection Mould system that do not come in contact with the molten plastic during the injection Moulding process. Instead, they form the pathways through which the molten plastic flows from the injection Moulding machine into the Mould Cavities. Here's an overview of cold runner components:

1. Sprue: - The Sprue is the primary channel through which molten plastic flows from the injection Moulding machine into the Mould.
- It is located at the entry point of the Mould and connects the injection Moulding machine's nozzle to the Mould’s runners.

2. Runners: - Runners are channels that distribute the molten plastic from the sprue to the individual cavities in the Mould.
- They are designed to ensure even flow of plastic to each cavity, minimizing variations in part quality.

3. Gate: - The gate is the point at which the molten plastic enters the Mould Cavity from the runner.
- It controls the flow of plastic into the cavity and determines the shape and size of the part's entry point.

4. Runner System: - The runner system consists of the sprue, runners, and gates, along with any additional components such as manifold blocks, flow restrictors, and temperature controllers.
- It is designed to efficiently deliver molten plastic to each cavity in the Mould, minimizing waste and ensuring consistent part quality.

Advantages of Cold Runner Systems: - Simplicity: Cold runner systems are relatively simple and cost-effective compared to hot runner systems.
- Lower Cost: They require fewer components and are easier to manufacture and maintain.
- Versatility: Cold runner systems can be used with a wide range of thermoplastic materials and Mould designs.

Disadvantages of Cold Runner Systems: - Waste Material: Cold runner systems generate excess material (sprue, runners and gates) that must be recycled or discarded, increasing material costs and waste.
- Cycle Time: The cooling time required for the excess material in the runner system can increase cycle times and reduce production efficiency.
- Part Quality: Variations in flow and temperature within the runner system can affect part quality, leading to defects such as sink marks and warping.

Despite these drawbacks, cold runner systems remain a popular choice for many injection Moulding applications due to their simplicity, versatility, and cost-effectiveness.

Hot Runner Mould Specifications:
A Hot Runner Mould, also known as a hot sprue Mould , is an injection Mould system that uses heated components to deliver molten plastic directly into the Mould cavities, eliminating the need for sprues, runners, and gates. Here's an overview of hot runner Mould s:

1. Components of a Hot Runner Mould: - Manifold: The manifold is a distribution system that directs molten plastic from the injection Moulding machine's nozzle to the individual hot runner nozzles.
- Hot Runner Nozzles: These are the components that deliver the molten plastic directly into the Mould Cavities. They are heated to maintain the plastic in a molten state as it flows through the Mould.
- Heater Bands: Heater bands are used to heat the hot runner system, ensuring that the plastic remains in a molten state as it flows through the Mould.
- Temperature Controllers: Temperature controllers are used to monitor and control the temperature of the hot runner system, ensuring that it remains at the optimal temperature for injection Moulding.
- Thermocouples: Thermocouples are sensors that are used to measure the temperature of the hot runner system and provide feedback to the temperature controllers.
- Manifold Plates: Manifold plates are the components of the hot runner system that distribute the molten plastic from the manifold to the individual hot runner nozzles.

2. Advantages of Hot Runner Moulds: - Reduced Waste: Hot runner moulds eliminate the need for sprues, runners, and gates, reducing material waste and saving on material costs.
- Faster Cycle Times: By eliminating the need for cooling and regrinding of sprues and runners, hot runner Mould s can reduce cycle times and increase production efficiency.
- Improved Part Quality: Hot runner Mould s can improve part quality by reducing the risk of defects such as weld lines, flow lines, and sink marks.

3. Disadvantages of Hot Runner Moulds: - Higher Initial Cost: Hot runner Moulds are more complex and expensive to manufacture and maintain than cold runner Moulds.
- Maintenance Requirements: Hot runner Moulds require regular maintenance to ensure that they remain in good working condition.
- Higher Energy Consumption: Hot runner Moulds require energy to heat the hot runner nozzles, increasing energy consumption and operating costs.

Despite these drawbacks, hot runner Moulds are widely used in injection Moulding applications where high production volumes, tight tolerances, and high-quality parts are required. They offer significant advantages in terms of reduced waste, faster cycle times, and improved part quality.
